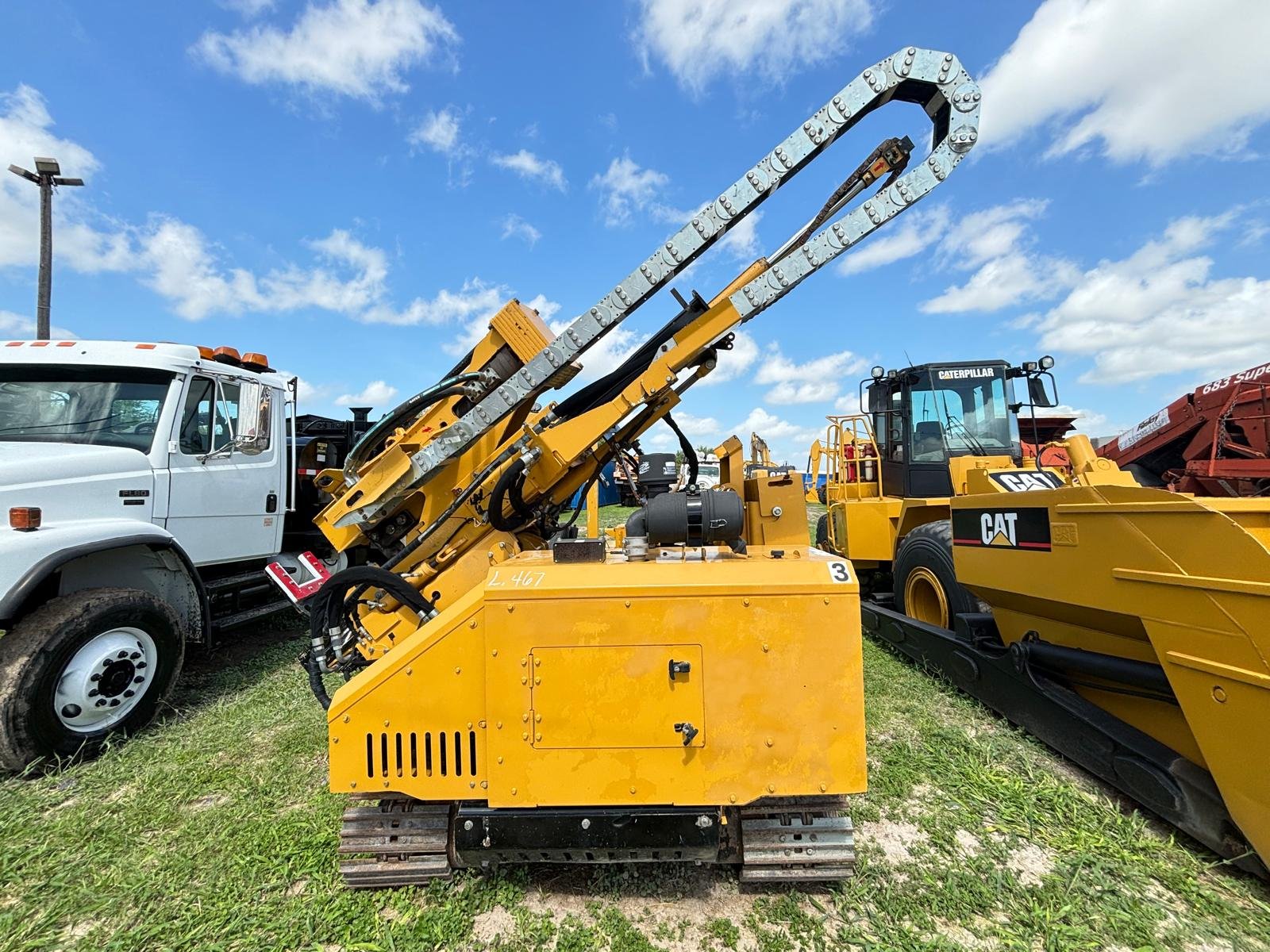

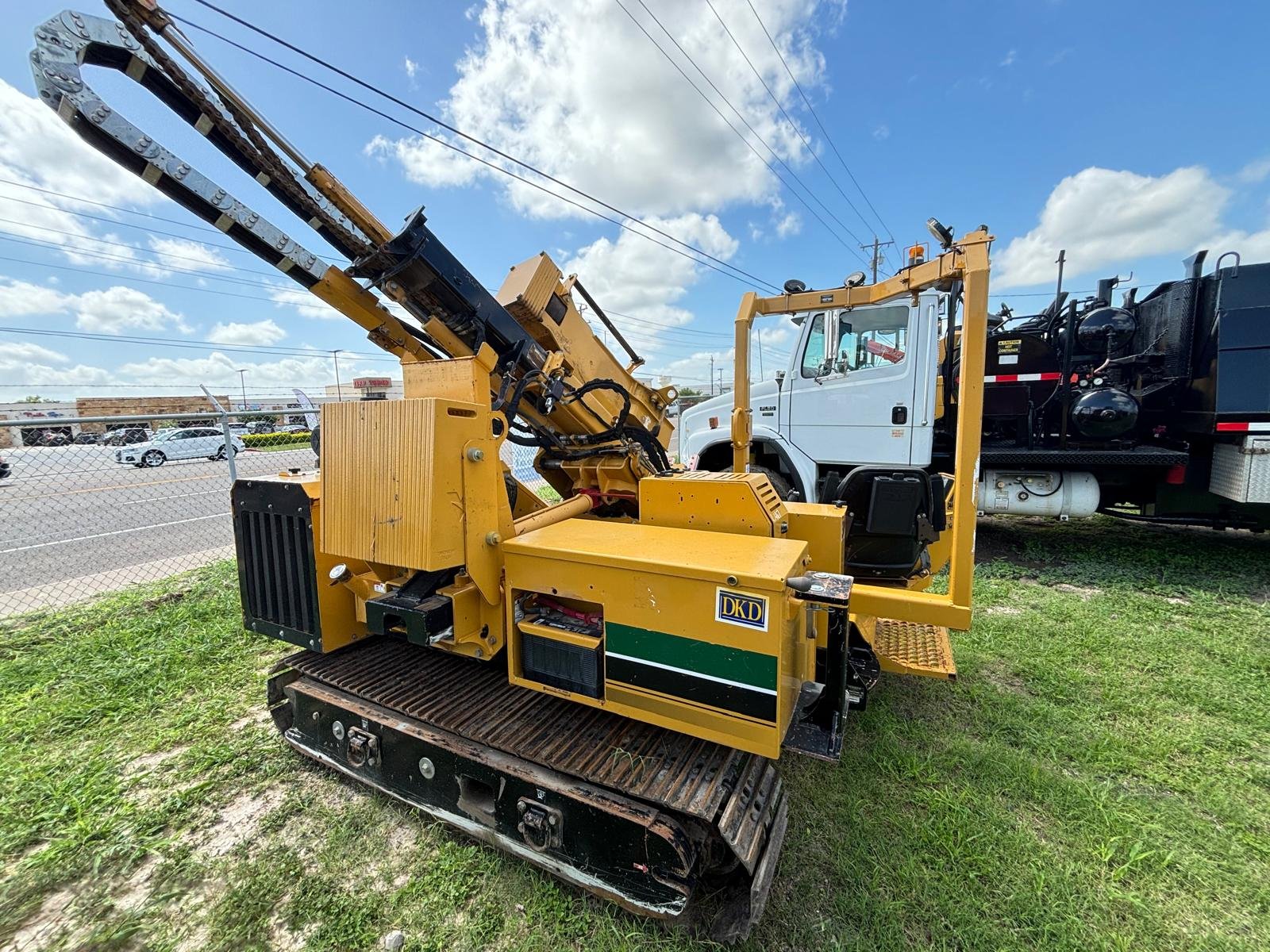

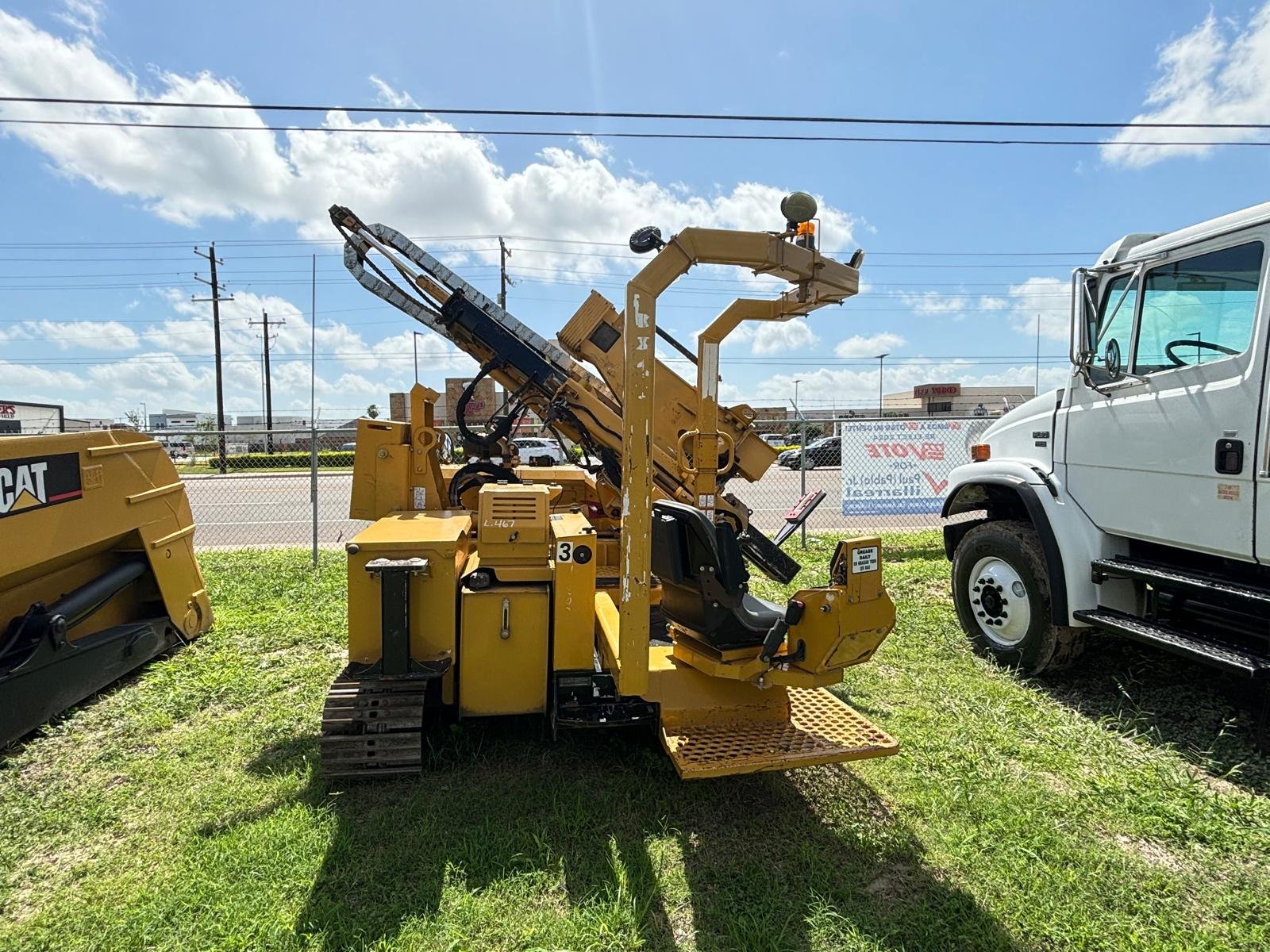

2017 VERMEER PD10 Crawler Mounter
$39,000
The 2017 Vermeer PD10 Pile Driver is designed for efficient and precise pile-driving operations. With its robust engine, versatile mast options, and advanced features like auto plumb and optional laser guidance, it offers enhanced productivity and accuracy in various job site conditions.
-
Manufacturer: Vermeer
Model: PD10
Year: 2017
Condition: Used
-
Maximum Operating Height:
10' (3 m) Mast: 14.9 ft (4.5 m)
15' (4.6 m) Mast: 19.9 ft (6.1 m)
20' (6.1 m) Mast: 24.9 ft (7.6 m)
Operating Weight:
10' (3 m) Mast: 14,135 lbs (6,411.5 kg)
15' (4.6 m) Mast: 14,320 lbs (6,495.4 kg)
20' (6.1 m) Mast: 15,980 lbs (7,248.4 kg)
Operating Dimensions:
Length: 10.2 ft (3.1 m)
Width: 10.1 ft (3.1 m)
Transport Dimensions:
Height:
10' (3 m) Mast: 106.3 in (270 cm)
15' (4.6 m) Mast: 106.3 in (270 cm)
20' (6.1 m) Mast: 110 in (279.4 cm)
Length: 10.2 ft (3.1 m)
Width:
10' (3 m) and 15' (4.6 m) Masts: 99 in (251.5 cm)
20' (6.1 m) Mast: 101 in (256.5 cm)
-

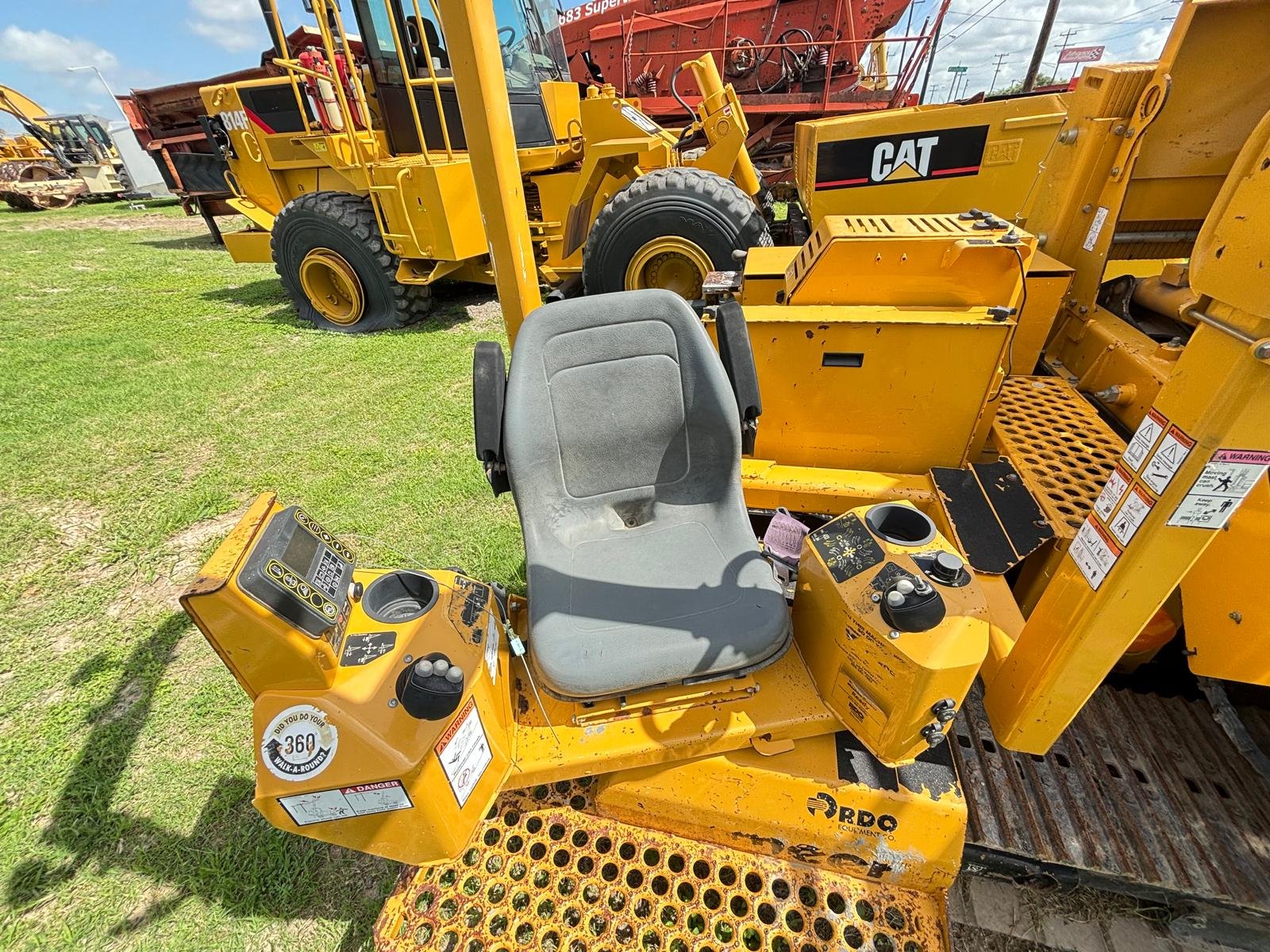

Operator's Station:
ROPS Rating: 16,300 lbs (7,393.6 kg)
-
Make and Model: Deutz D 2.9 L4
Gross Horsepower: 49 hp (36.5 kW)
Number of Cylinders: 4
Cooling Medium: Liquid
Fuel Type: Diesel
EPA Certification: Tier 4 Final (EU Stage IIIA)
-
Fuel Tank: 18 gal (68.1 L)
Engine Crankcase with Filter: 2.1 gal (8.1 L)
Hydraulic Tank: 36 gal (136.3 L)
-
Hydraulic Pump Type: Sauer Danfoss H1 hydrostatic
Maximum Transport Speed: 1.7 mph (2.7 km/h)
Track Drive: Steel track with urethane pads
-
Maximum Angle:
Direction of Travel: 11 degrees
Perpendicular to Travel: 20 degrees
Impact Drive Type: High-frequency hammer
Maximum Hammer Impact: 1,500 bpm
Maximum Hammer Energy: 950 Joules
Maximum Pile Dimensions:
Round (Standard Opening): 7.2 in (18.3 cm)
Square (Standard Opening): 6.2 in (15.7 cm)
Round (Large Opening): 9.3 in (23.6 cm)
Square (Large Opening): 8.3 in (21.1 cm)
-
Auto Plumb: Standard
Laser Receiver: Optional
Maximum Laser Operating Distance: 1,500 ft (457.2 m)
Remote Control: Optional
