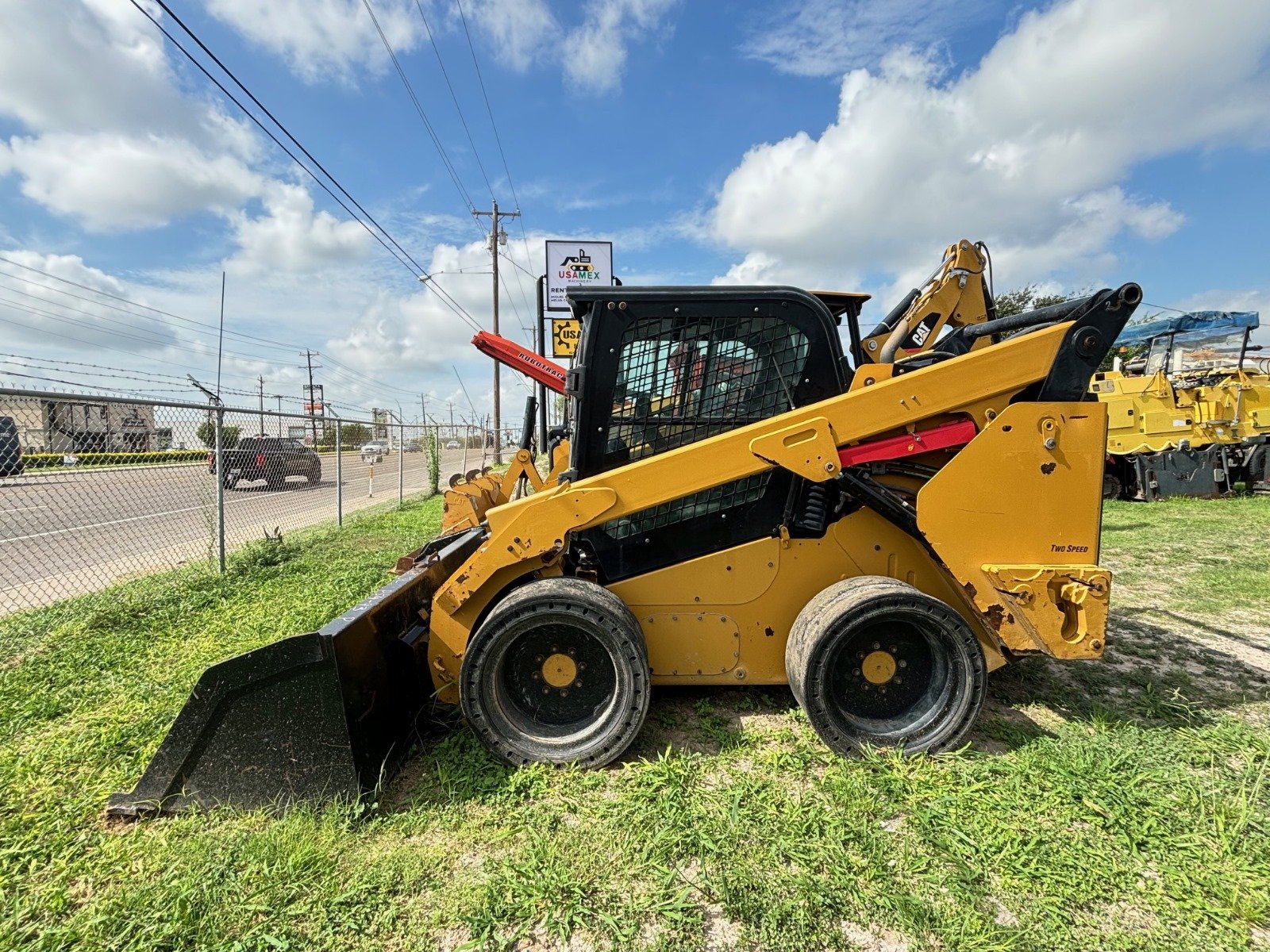

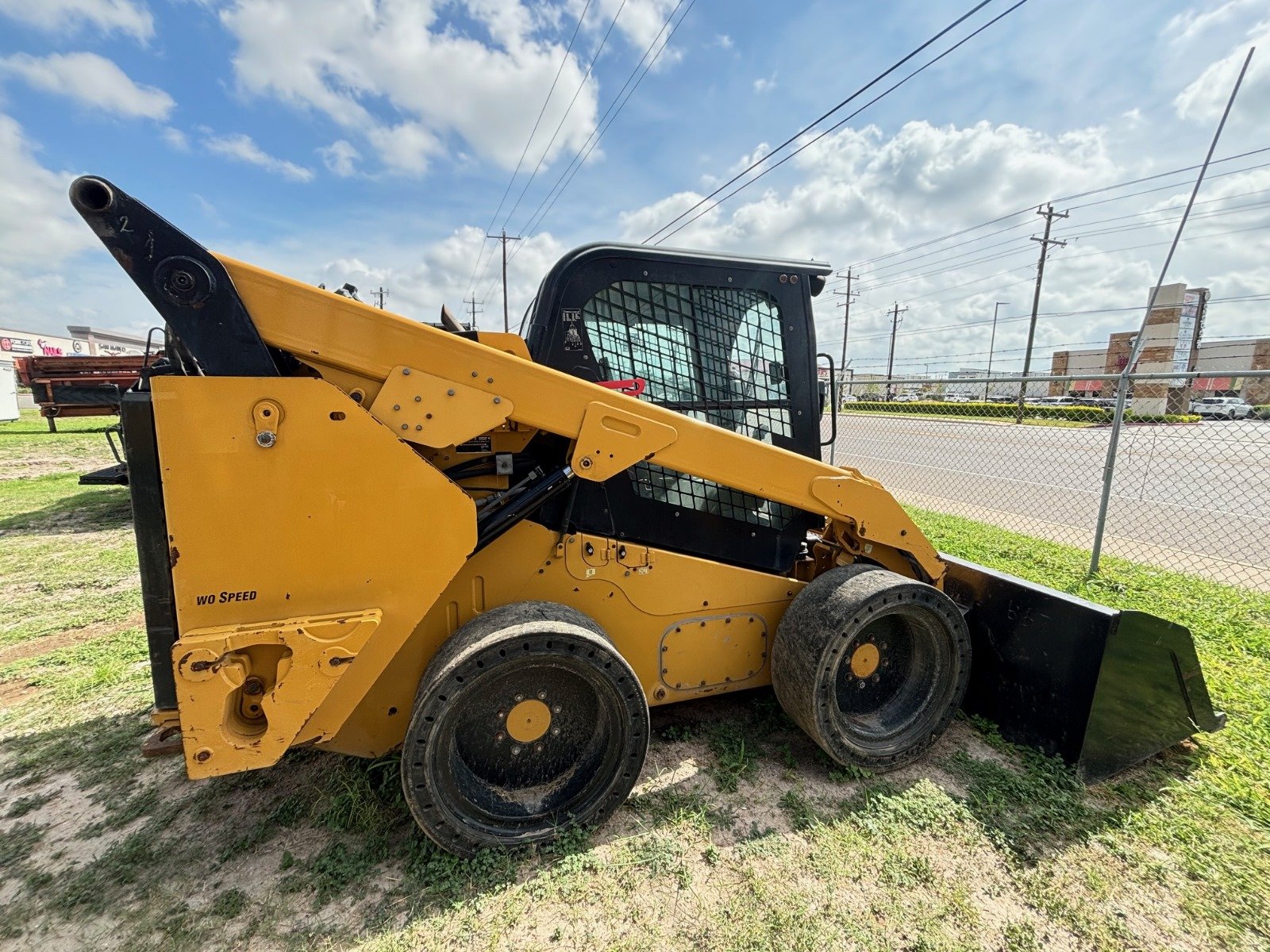

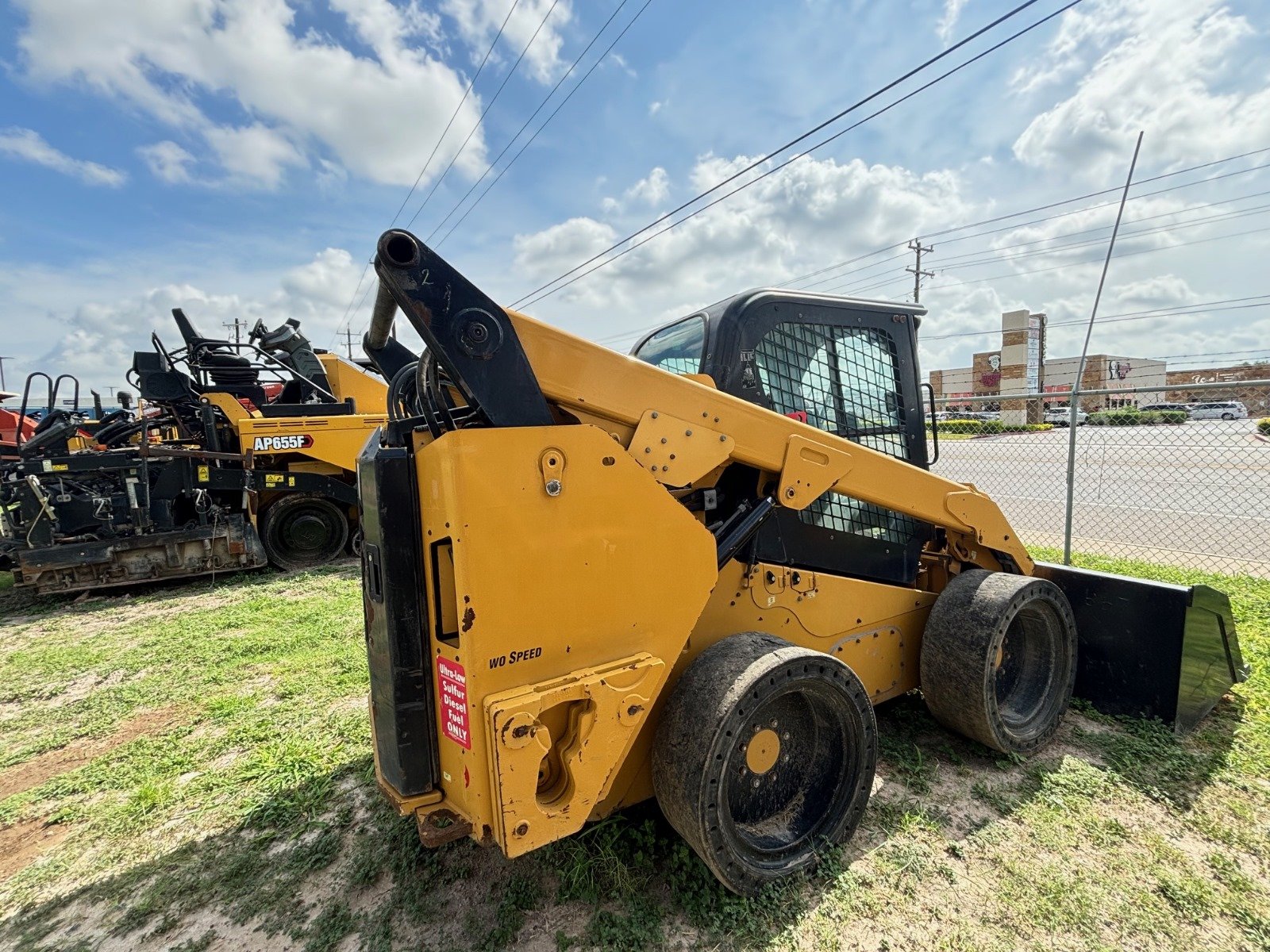

2016 CAT 272D2 Two Speed Skid Steer Loader

Manufacturer: Caterpillar

Model: 272D2

Year: 2016

Condition: Used

• Model: Cat C3.8 DIT (turbocharged)

• Net Flywheel Power: 95 hp (71 kW)

• Gross Power: 98 hp (73 kW)

• Displacement: 3.8 liters (232 in³)

• Peak Torque at 1,500 rpm: 246 lbf-ft (334 N·m)

• Wheelbase: 54.6 in (1,386 mm)

• Length without Bucket: 127.6 in (3,242 mm)

• Length with Bucket on Ground: 155.7 in (3,954 mm)

• Height to Top of Cab: 82.4 in (2,094 mm)

• Maximum Overall Height: 160.1 in (4,067 mm)

• Bucket Pin Height at Maximum Lift: 127.1 in (3,229 mm)

• Ground Clearance: 8.9 in (226 mm)

• Vehicle Width over Tires: 72 in (1,829 mm)

• Rated Operating Capacity: 3,400 lb (1,542 kg)

• Rated Operating Capacity with Optional Counterweight: 3,650 lb (1,656 kg)

• Tipping Load: 6,800 lb (3,084 kg)

• Breakout Force (Tilt Cylinder): 7,443 lb (3,376 kg)

• Breakout Force (Lift Cylinder): 6,074 lb (2,755 kg)

• Operating Weight: 8,768 lb (3,977 kg)

• Standard Flow:

  • Hydraulic Flow: 23 gal/min (86 L/min)

  • Hydraulic Pressure: 3,335 psi (23,000 kPa)

  • Hydraulic Power: 44 hp (33 kW)

• High Flow XPS:

  • Hydraulic Flow: 32 gal/min (121 L/min)

  • Hydraulic Pressure: 4,061 psi (28,000 kPa)

  • Hydraulic Power: 76 hp (57 kW)

• Two-Speed Transmission for faster travel speeds and increased productivity

• Vertical Lift Design for extended reach and lift height, ideal for truck loading and material handling

• Long Wheelbase for better stability and a smoother ride

• Sealed and Pressurized Cab Option providing a clean, quiet, and comfortable operating environment

• Advanced Display with customizable settings for implement response, hystat response, and creep control, along with multi-language options, security system, and rearview camera
