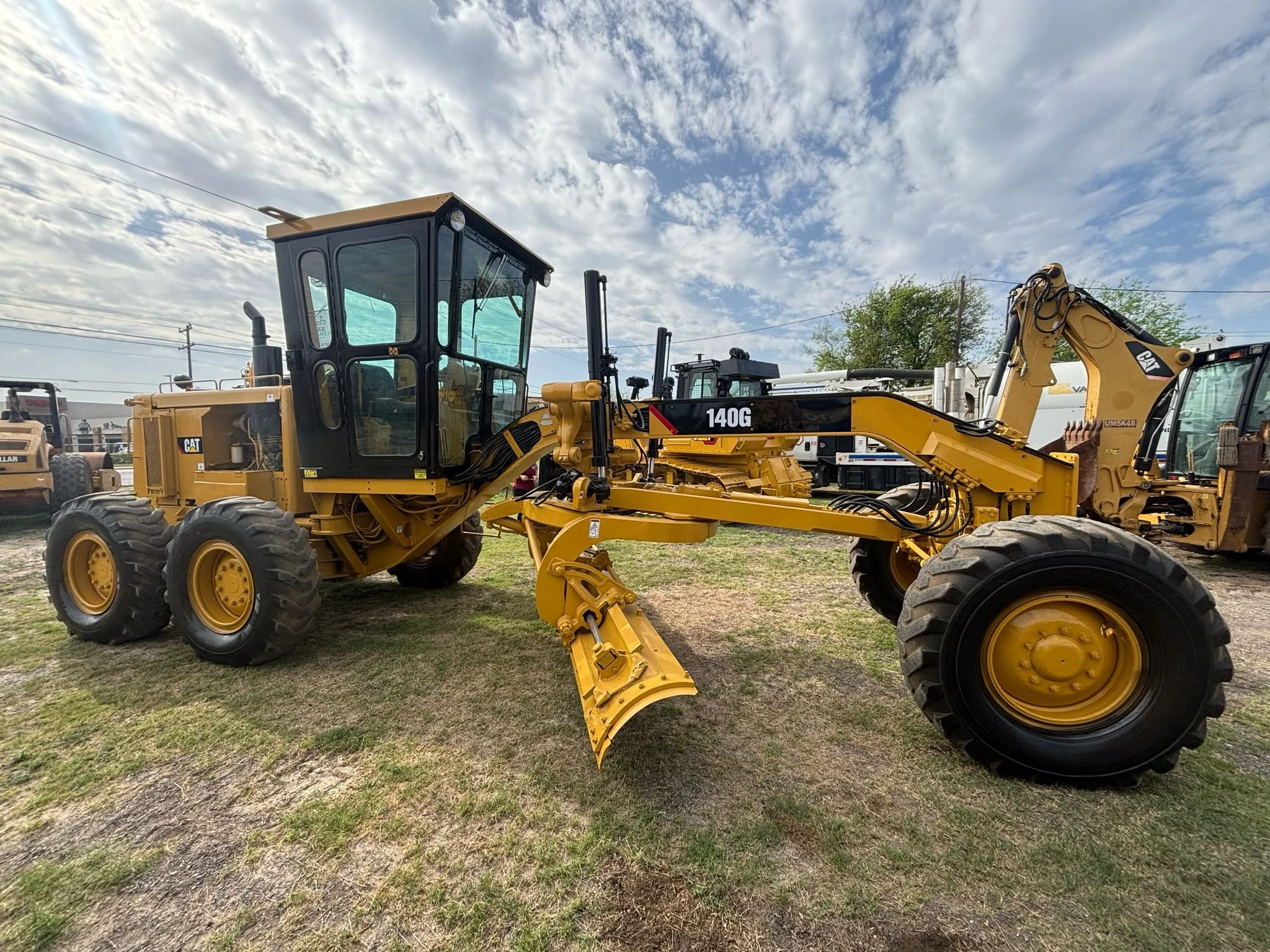

cat 140g motor grader
$49,500
The Caterpillar 140G Motor Grader is known for its reliability, durability, and performance in grading and road maintenance applications. With a powerful engine, efficient hydraulic system, and precise moldboard control, it is an excellent choice for construction, roadwork, and land development projects.
-
Manufacturer: Caterpillar
Model: 140G
Condition: Used
-
Model: Caterpillar 3306 Turbocharged
Net Power: 150 horsepower
Displacement: 10.5 liters (638 cubic inches)
Number of Cylinders: 6
-
Overall Length: 8,310 mm (27.3 feet)
Width Over Tires: 2,440 mm (8 feet)
Height to Top of Cab: 3,360 mm (11 feet)
Blade Base: 2,570 mm (8.4 feet)
Wheelbase: 5,920 mm (19.4 feet)
Tandem Axle Wheelbase: 1,520 mm (5 feet)
-
Standard Operating Weight: 12,620 kg (27,822 pounds)
Fuel Capacity: 284 liters (75 gallons)
Oil Capacity: 29.3 liters (7.7 gallons)
Hydraulic System Fluid Capacity: 68 liters (18 gallons)
Cooling System Fluid Capacity: 47.3 liters (12.5 gallons)
Tire Size: 14×24 10PR
Operating Voltage: 24 volts
Alternator Supplied Amperage: 40 amps
-
Type: Direct Drive, Powershift
Number of Forward Gears: 6
Number of Reverse Gears: 6
Maximum Forward Speed: 41 km/h (25.5 mph)
Maximum Reverse Speed: 41 km/h (25.5 mph)
-
Turning Radius: 7.3 meters (24 feet)
Articulation Angle (Left/Right): 50 degrees
-
Ground Clearance: 610 mm (2 feet)
Wheel Lean: 18 degrees
Total Oscillation: 32 degrees
-
Pump Type: Closed-center, constant-pressure system with variable displacement piston pump
Pump Flow: 193.1 liters per minute (51 gallons per minute)
Relief Valve Pressure: 14,823.7 kPa (2,150 psi)
-
Width: 3,660 mm (12 feet)
Height: 610 mm (24 inches)
Thickness: 22 mm (0.87 inches)
Maximum Depth of Cut: 438 mm (17.2 inches)
Side Shift (Left/Right): 660 mm (26 inches)
